Ventilation system BreezMe FT series

Mycond BreezMe FT ventilation units are characterized by energy efficiency and are equipped with a hexagonal counterflow recuperator, EC type motors, Mini-Pleat or pocket filters, and have built-in automation in Plug&Play format.

Luftflödeshastighet: 1250 ... 4000 m3/h

Vill du köpa eller har du frågor?

Mycond BreezMe FT are energy-efficient units with built-in hexagonal counterflow recuperator, EC motors, Mini-Pleat or pocket filters, and standard plug-and-play automation.

MyCond BreezMe FT Mini-pleat or pocket filters

Mini-pleat or pocket filters

Highly absorbent filters with a large filtration area.
Supply - EU class 7
Exhaust - EU class 5

Casing

Panels filled with mineral wool, closed with sheet metal on both sides.
Casing parameters according to EN 1886: T2, TB3, L1, D1, F9.
Fan and filter section panels equipped with hinges.

MyCond BreezMe FT Casing

MyCond BreezMe FT Energy recovery

Energy recovery

High-efficiency counter-current hexagonal heat exchanger with by-pass.
Recovery efficiency of up to 90%.

Automation

Multifunctional automation integrated into the air handling unit - configured and ready for operation.

MyCond BreezMe FT Automation

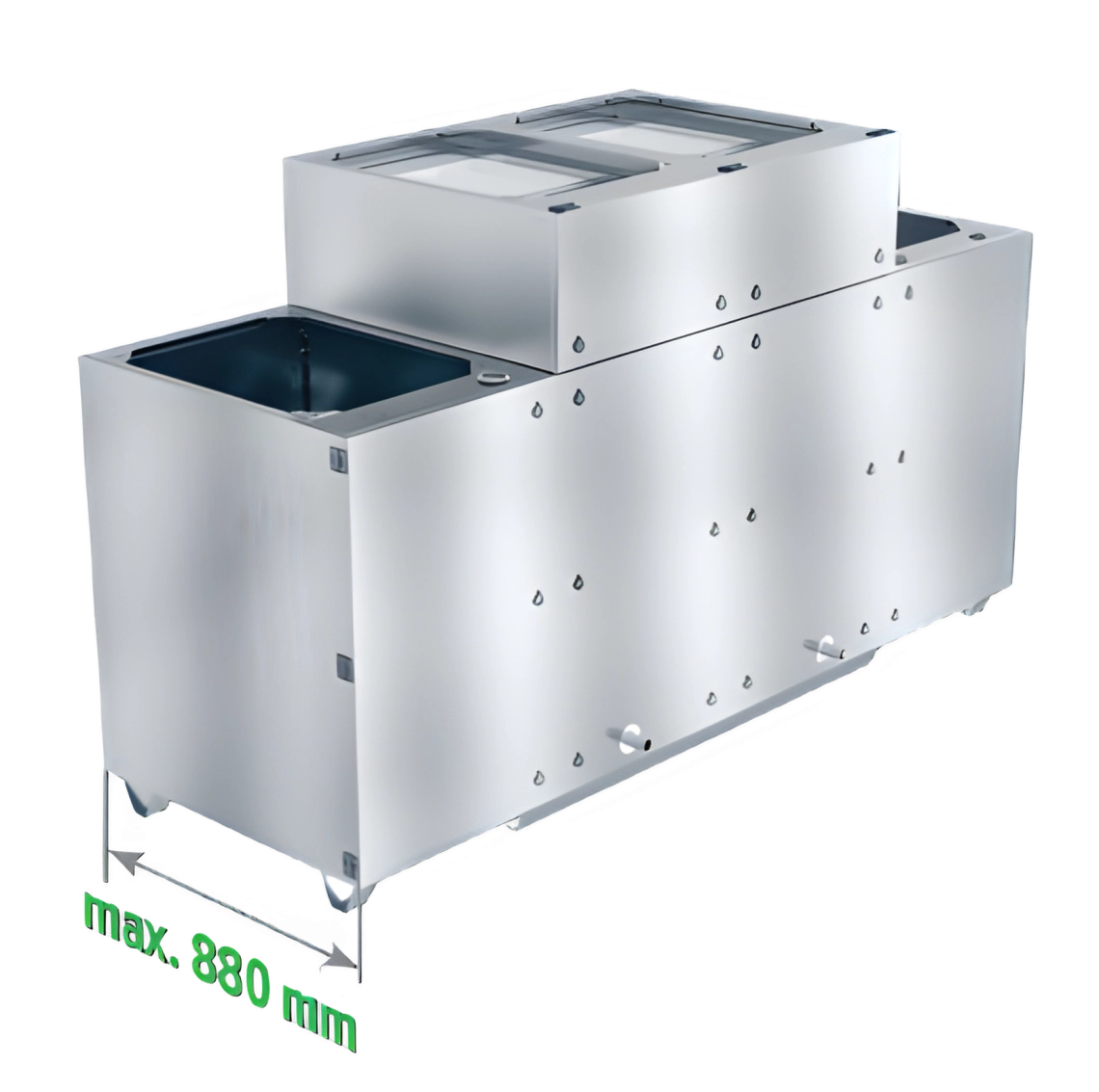

MyCond BreezMe FT Dimensions

Dimensions

The width of the devices 88 cm - the possibility of transport through the opening of 90cm without disassembling the device.

Data of the base control panel

Size of the air handling unit	Capacity nominal	Range capacity	Height	Width	Width duct
Units	^m3/h	^m3/h	mm	mm	mm
MVS0023c	2100	1250 - 2010	1176	880	700x445
MVS0033c	3000	1800 - 3000	1447	880	700х513
MVS0043c	4000	2400 - 4000	1737	880	700x613

Base panel lengths

Panel size
Units	mm	mm
MVS0023c	2100	2100
MVS0033c	2460	2460
MVS0043c	2860	2860

MyCond BreezMe FT technical drawing with dimensions and location of inlet/outlet openings
